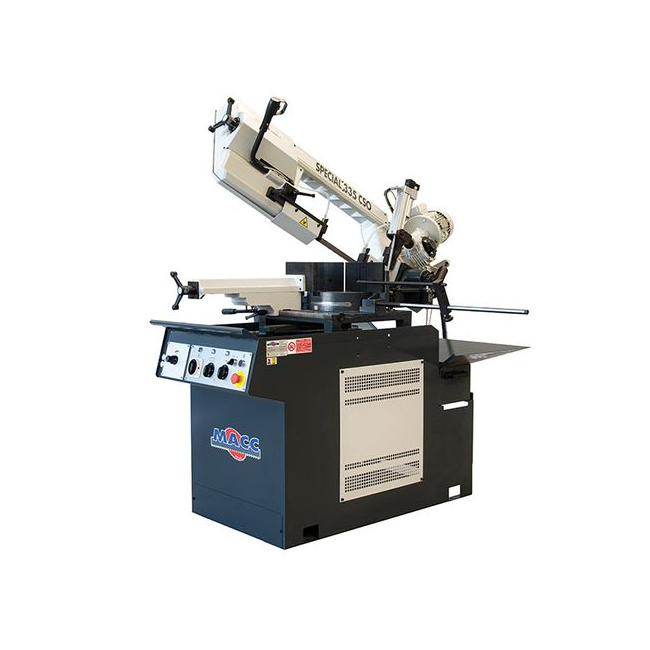

MACC 415V 3PH 260MM SWIVEL HEAD BANDSAW MB-335CSO-3
Premium Italian-made construction ensures superior quality, precision, and long-lasting performance, perfect for demanding workshop environments. 2-way swivel head enables accurate mitre cuts from 0° to 60°, providing excellent flexibility for a wide range of angled and compound cutting tasks. Dual mode operation offers maximum versatility and control: Trigger switch with manual down feed for quick, small cuts and fine adjustments. Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut, ideal for larger, precision cuts. Heavy-duty dual direction vice ensures secure clamping from multiple angles, enhancing stability and cutting accuracy. Integrated recirculating coolant system keeps the blade cool, improves surface finish, and extends blade life. Adjustable material stop allows for consistent, repeatable cuts — perfect for production and batch work. Equipped with a safety emergency stop switch for immediate machine shutdown, enhancing operator safety. Includes a 12-month warranty for peace of mind and reliable support. Supplied complete with a sturdy stand and high-quality blade, ready for immediate use out of the box. Optional variable speed model available to further expand cutting versatility and handle a wider range of materials. Motor: 1.5 hp, Three Phase (415V). Blade speed: Two-speed options at 38 or 78 m/min. Blade size: 27 mm x 0.9 mm x 3010 mm. Weight: 365 kg. 90° cutting capacity — Round: 260 mm; Square: 250 mm; Rectangle: 330 x 220 mm. 45° right cutting capacity — Round: 215 mm; Square: 200 mm; Rectangle: 210 x 160 mm. 60° right cutting capacity — Round: 130 mm; Square: 130 mm; Rectangle: 140 x 130 mm. 45° left cutting capacity — Round: 180 mm; Square: 155 mm; Rectangle: 225 x 60 mm.
Read full descriptionSpecial Order
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Premium Italian-made construction ensures superior quality, precision, and long-lasting performance, perfect for demanding workshop environments.
- 2-way swivel head enables accurate mitre cuts from 0° to 60°, providing excellent flexibility for a wide range of angled and compound cutting tasks.
- Dual mode operation offers maximum versatility and control:
- Trigger switch with manual down feed for quick, small cuts and fine adjustments.
- Control panel with fully adjustable hydraulic down feed and automatic shut-off at the end of the cut, ideal for larger, precision cuts.
- Heavy-duty dual direction vice ensures secure clamping from multiple angles, enhancing stability and cutting accuracy.
- Integrated recirculating coolant system keeps the blade cool, improves surface finish, and extends blade life.
- Adjustable material stop allows for consistent, repeatable cuts — perfect for production and batch work.
- Equipped with a safety emergency stop switch for immediate machine shutdown, enhancing operator safety.
- Includes a 12-month warranty for peace of mind and reliable support.
- Supplied complete with a sturdy stand and high-quality blade, ready for immediate use out of the box.
- Optional variable speed model available to further expand cutting versatility and handle a wider range of materials.
Specifications
- Motor: 1.5 hp, Three Phase (415V)
- Blade speed: Two-speed options at 38 or 78 m/min
- Blade size: 27 mm x 0.9 mm x 3010 mm
- Weight: 365 kg
Cutting Capacity
- 90° cutting capacity — Round: 260 mm; Square: 250 mm; Rectangle: 330 x 220 mm
- 45° right cutting capacity — Round: 215 mm; Square: 200 mm; Rectangle: 210 x 160 mm
- 60° right cutting capacity — Round: 130 mm; Square: 130 mm; Rectangle: 140 x 130 mm
- 45° left cutting capacity — Round: 180 mm; Square: 155 mm; Rectangle: 225 x 60 mm
- MPN
- MB-335CSO-3
- Manufacturer
- Macc
