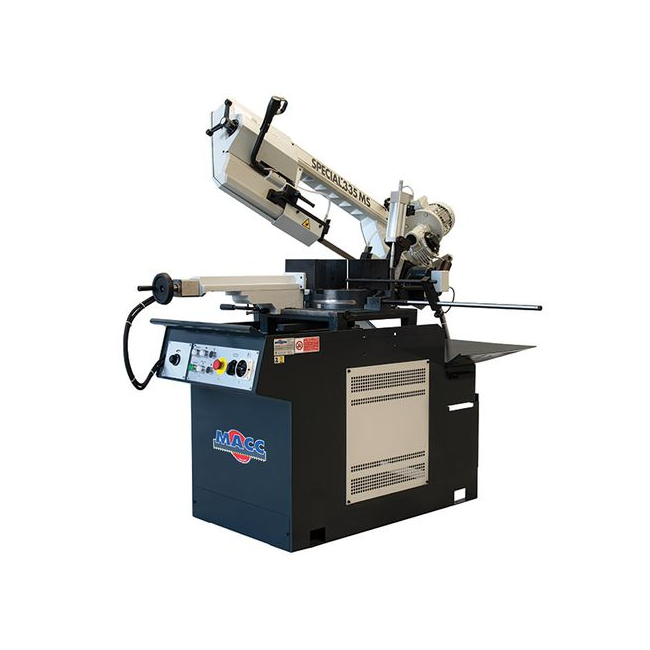

MACC 415V 3PH 260MM SWIVEL HEAD BANDSAW MB-335MS-3

Features

• Premium Italian-made construction ensures exceptional quality, precision, and durability — ideal for professional workshops and industrial use.
• 2-way swivel head enables mitre cuts from 0° to 60°, offering excellent flexibility for angled and compound cutting applications.
• Dual mode operation provides maximum versatility and control:
  • Trigger switch with manual down feed for quick, smaller cuts and fine adjustments.
  • Semi-automatic function designed for high-volume production work, reducing operator effort and increasing productivity.
• Heavy-duty dual direction vice ensures strong, secure clamping from multiple angles, enhancing cutting accuracy and safety.
• Integrated recirculating coolant system keeps the blade cool, improves surface finish, and extends blade life.
• Adjustable material stop allows for consistent, repeatable cuts — ideal for batch and production jobs.
• Equipped with a safety emergency stop switch for immediate shutdown, prioritizing operator safety.
• Includes a 12-month warranty for peace of mind and dependable support.
• Delivered complete with a sturdy stand and high-quality blade, ready to use right out of the box.

Semi-Automatic Function

• Operator inserts material
• Operator presses start button
• Vice clamps material
• Blade motor starts
• Bow lowers to cut material
• Bow rises automatically
• Blade stops
• Vice opens
• Cycle repeats

Specifications

• Motor: 1.5 hp, Three Phase (415V)
• Blade speed: Two-speed options at 38 or 78 m/min
• Blade size: 27 mm x 0.9 mm x 3010 mm
• Weight: 415 kg

Cutting Capacity

• 90° cutting capacity — Round: 260 mm; Square: 250 mm; Rectangle: 330 x 180 mm
• 45° right cutting capacity — Round: 215 mm; Square: 200 mm; Rectangle: 210 x 160 mm
• 60° right cutting capacity — Round: 130 mm; Square: 130 mm; Rectangle: 140 x 130 mm
• 45° left cutting capacity — Round: 180 mm; Square: 155 mm; Rectangle: 225 x 60 mm
