Features

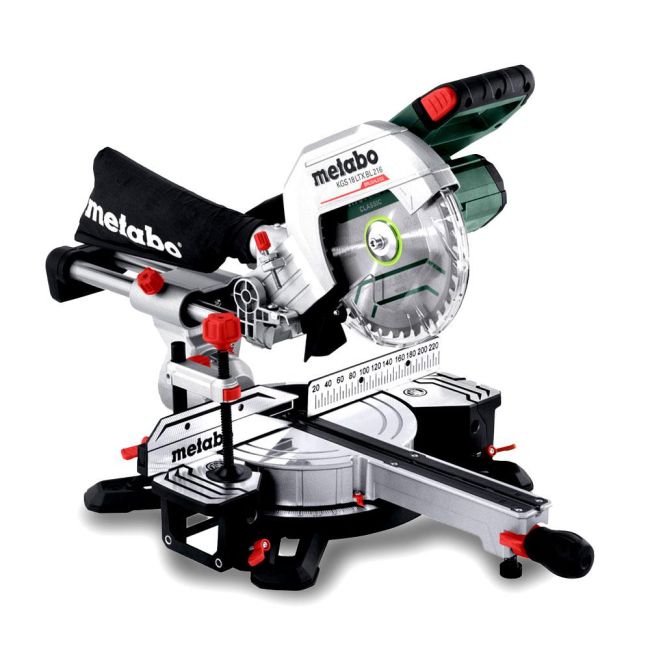

• Compact cordless crosscut and mitre saw of the mobile M-class - light, precise, user-friendly
• Powerful Brushless motor for powerful sawing like with a mains-powered tool
• Up to 400 cuts in soft wood 60 x 60 mm per battery pack charge (LiHD 10 Ah)
• Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED
• Large cutting capacity thanks to sliding function for wide work pieces
• Turntable with fast, precise setting of common angles using stop points
• Saw blade inclination from -2 to 47 degrees, therefore also suited for undercuts
• Robust die-cast aluminium design for the highest demands
• Effective dust extraction via integrated dust scoop
• Soft start and overload protection for long service life of motor and drive
• Extendable table width extensions, also removable to put underneath extremely long work pieces
• Quick-action clamp for secure fixing of the work piece from the top or front
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively
• Ergonomic handle areas for carrying with one or two hands

Specifications

• Voltage: 18V
• Support Surface: 345mm x 730mm
• Maximum Cutting Width 90/45: 305mm/215mm
• Maximum Cutting Depth 90/45: 70mm/40mm
• Cutting Capacity: 90/90: 305mm x 70mm 45/45: 215mm x 40mm
• 90/90: 305mm x 70mm
• 45/45: 215mm x 40mm
• Turntable Setting left/right: 50/50
• Saw Blade Tilt left/ right: 47/2
• Saw Blade: 216mm x 30mm
• No-load Speed: 5000rpm
• Max Cutting Speed: 57m/s
• Noise Emission: Sound Pressure Level: 91 dB(A) Sound Power Level (LwA): 101 dB(A) Uncertaintiy of measurement K: 3 dB(A)
• Sound Pressure Level: 91 dB(A)
• Sound Power Level (LwA): 101 dB(A)
• Uncertaintiy of measurement K: 3 dB(A)
• Weight: 12.8kg

Includes

• 2x Table Length Extensions
• 1 x Length Guide
• 1 x Material Clamp
• Tools for saw blade change
• 1 x Chip Collection Bag
