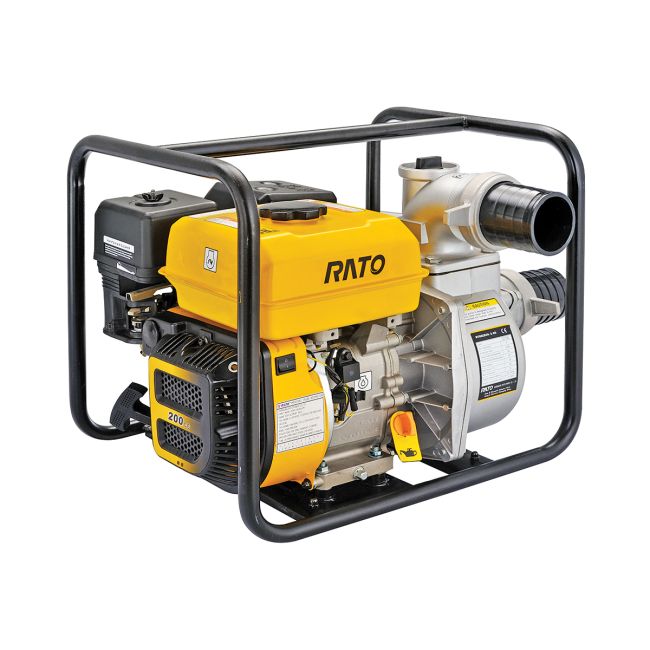

Features

• Powered by a 7hp 4-stroke OHV engine for reliable and high-performance operation
• Delivers an impressive flow rate of 1000 litres per minute
• Rugged full-frame protection with anti-vibration mounts for enhanced durability and stability
• Cast iron volute and impeller with a silicon carbide seal for long-lasting performance
• Comes with complete accessories for efficient and reliable use
• Scroll case positioned by a locating pin for improved operational reliability
• Anti-winding ring provides functionality for both clear and dust water pumping
• Separated shock pad design minimizes vibrations and enhances support

Specifications

• Bore x Stroke: 70 x 55mm
• Displacement: 212ml
• Compression Ratio: 9:1
• Net Power: 4.4kW / 3600rpm
• Fuel Consumption: ≤395 g/kW-h
• Net Torque: 12N.m / 2500rpm
• Pump Set: 3" clean pump
• Suction Port Diameter: 75mm (3")
• Discharge Port Diameter: 75mm (3")
• Suction Head Lift: 8m
• Total Head Lift: 28m
• Discharge Capacity: 60m³/h (1000 litres per minute)
• Dimensions (L x W x H): 500 x 395 x 445mm
• Net Weight: 25.5kg
