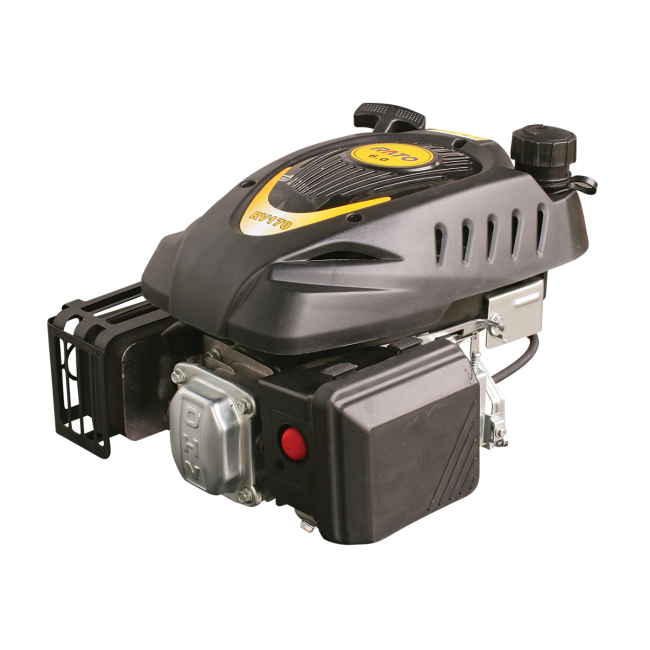

Rato 175cc Engine – 22mm Vertical Shaft RV170S
or 4 interest-free payments of $79.75 with Afterpay or Zip
Powered by a 4.5 HP 4-stroke OHV engine with 173cc displacement. Vertical shaft orientation for applications such as lawn mowers and other equipment. Delivers a net power output of 3.0kW at 3600rpm. Generates 9.5Nm of torque at 2500rpm for reliable performance. Recoil start system for easy and dependable starting. Durable 22mm shaft size compatible with a variety of tools and machines. Bore x Stroke: 70 x 45.2mm. Displacement: 173cc. Net Power: 3.0kW / 3600rpm. Net Torque: 9.5Nm / 2500rpm. Compression Ratio: 8.3:1. Starting System: Recoil start. Shaft Size: 22mm. Shaft Orientation: Vertical. PTO Shaft Rotation: Counterclockwise (CCW). Dimensions (L x W x H): 395 x 348 x 282mm. Weight: 12.5kg.
Read full descriptionIn stock
Apple Pay, Google Pay, Link and PayPal, no account needed
Delivery to your door
Features
- Powered by a 4.5 HP 4-stroke OHV engine with 173cc displacement
- Vertical shaft orientation for applications such as lawn mowers and other equipment
- Delivers a net power output of 3.0kW at 3600rpm
- Generates 9.5Nm of torque at 2500rpm for reliable performance
- Recoil start system for easy and dependable starting
- Durable 22mm shaft size compatible with a variety of tools and machines
Specifications
- Bore x Stroke: 70 x 45.2mm
- Displacement: 173cc
- Net Power: 3.0kW / 3600rpm
- Net Torque: 9.5Nm / 2500rpm
- Compression Ratio: 8.3:1
- Starting System: Recoil start
- Shaft Size: 22mm
- Shaft Orientation: Vertical
- PTO Shaft Rotation: Counterclockwise (CCW)
- Dimensions (L x W x H): 395 x 348 x 282mm
- Weight: 12.5kg
- MPN
- RV170S
- Manufacturer
- Rato
