Features

• Patented digital deadlocking technology for maximum security inside and out
• Meets Australian Lock Standards AS4145.2:2008, SL8 (Security) and D8 (Durability)
• Certified to BAL-40 Bushfire Level (AS1530.8.1-2007)
• LED Lock Alert indicates lock mode: Unlocked (Green), Locked (Yellow), Secure (Red)
• Total control via the Yale Home App to lock/unlock, grant/restrict access, and monitor visitor activity
• Auto Unlock feature seamlessly unlocks the door as you approach
• Door position sensor indicates if the door is open or closed for added peace of mind
• Key-free design—no cylinder means no lost keys, no picking, and no bumping
• Compatible with Yale Connect Plus Hub 2* for remote access and voice assistant integration (Google, Samsung, Alexa)
• Works with Apple HomeKit
• Compatible with Yale Smart Keypad* for PIN code entry
• Upgradeable with Yale Unity Nexion Retrofit Kit* to replace existing Lockwood Nexion locks
• Designed for easy, trade-friendly installation (Yale Installation Template* available)
• Ideal for residential entry doors (not suitable for fire doors or exposed gates)

Specifications

• Australian Standards: SL8 (Security), D8 (Durability), BAL-40 (Bushfire)
• Compliance: RCM for Australia & New Zealand
• IP Rating: IP54
• Operating Temperature: -25°C to 70°C
• Humidity: 0-95%
• Power: 4 x AA Alkaline batteries
• Battery Life: Approximately 12 months
• Lock Type: 530 Latch
• Backset: Adjustable 60-70mm (70mm latch sold separately – Y530-222SC)
• Door Thickness: 35-60mm
• Volume Settings: Mute, Low, High
• Low Battery Warning: Alerts at 20%
• RFID: 2 x Contactless Key Cards included
• Finish: Silver powdercoat with black nylon
• Recommended Use: Entry doors (internal escutcheon must not be exposed to external elements)

Includes

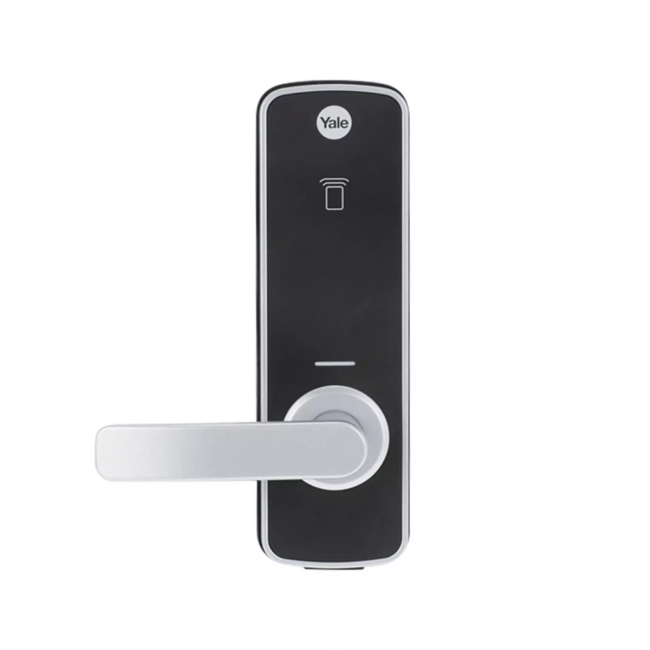

• Yale Unity Entrance Lock
• 2 x Contactless Key Cards
• 4 x AA Alkaline Batteries
• Installation Guide
• Mounting Screws
• Door Template
